詳細信息

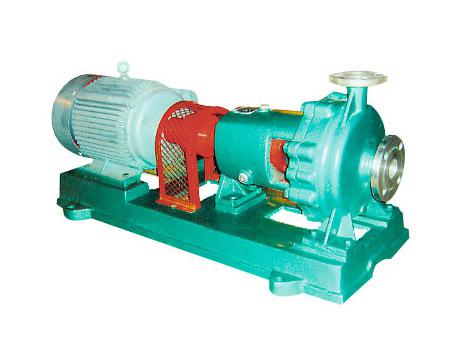

產品介紹
一、CPN型堿泵性能范圍(按設計點)
流量:Q 1.6-400m3/h
揚程:H 5-125m
工作壓力:P≤1.6MPa
工作溫度:t -20~+150°C
二、CPN型堿泵適用行業
氯堿、純堿工業;
醫藥、化肥、農藥;
石油化工、化纖、造紙工業、染料工業、環保工程及水處理系統。
三、CPN型堿泵特點
該型離心泵葉輪為后半開式結構,不易堵塞,效率高,運轉時產生負壓,密封性能好,使用壽命長。
可輸送含有固體顆粒,易結晶的介質。耐高溫,使用時需加冷卻水。
四、密封型式:?jiǎn)味嗣鏅C(jī)械密封、雙端面機械密封或填料密封。
五、CPN型堿泵與介質接觸的主要零件材質如下,可按需定制。
ZG1Cr18Ni9,ZG1Cr18Ni9Ti,ZGOCr18Ni12Mo2Ti,ZG1Cr18Ni12Mo2Ti,ZG00Cr14Ni14Si4,ZG00Cr18Ni10
CGCr28 ,ZG1Cr18Mn13Mo2 以及Monelt等。
CPN堿泵性能參數表
型號 |
流量 |
揚程 |
轉速 |
功率(KW) |
效率 |
允許汽蝕余量 |
||
(m3/h) |
(L/S) |
(m) |
(r/min) |
軸功率 |
電機功率 |
% |
(m) |
|
CPN25-25-125 |
1.6 |
0.44 |
5 |
1450 |
0.05 |
0.55 |
45 |
1 |
CPN25-25-160 |
8 |
0.09 |
0.55 |
37 |
||||
CPN25-25-200 |
12.5 |
0.155 |
0.75 |
35 |
||||
CPN25-25-250 |
20 |
0.26 |
1.5 |
33 |
||||
CPN40-32-125 |
3.2 |
0.89 |
5 |
0.09 |
0.55 |
46 |
1 |
|
CPN40-32-160 |
8 |
0.17 |
0.75 |
42 |
||||
CPN40-32-200 |
12.5 |
0.29 |
1.1 |
38 |
||||
CPN40-32-250 |
20 |
0.49 |
2.2 |
35 |
||||
CPN50-32-125 |
6.3 |
1.75 |
5 |
0.19 |
0.55 |
45 |
1 |
|
CPN50-32-160 |
8 |
0.34 |
0.75 |
40 |
||||
CPN50-32-200 |
12.5 |
0.65 |
1.5 |
33 |
||||
CPN50-32-250 |
20 |
1.27 |
2.2 |
27 |
||||
CPN65-50-125 |
12.5 |
3.47 |
5 |
0.31 |
0.55 |
55 |
1.2 |
|
CPN65-50-160 |
8 |
0.53 |
0.75 |
51 |
||||
CPN65-40-200 |
12.5 |
0.93 |
1.5 |
46 |
||||
CPN65-40-250 |
20 |
1.75 |
3 |
39 |
||||
CPN65-40-315 |
32 |
3.3 |
5.5 |
33 |
||||
CPN80-65-125 |
25 |
6.94 |
5 |
0.53 |
0.75 |
64 |
1.4 |
|
CPN80-65-160 |
8 |
0.88 |
1.5 |
62 |
||||
CPN80-50-200 |
12.5 |
1.49 |
2.2 |
57 |
||||
CPN80-50-250 |
20 |
2.569 |
4 |
53 |
||||
CPN80-50-315 |
32 |
5.067 |
7.5 |
43 |
||||
CPN100-80-125 |
50 |
13.88 |
5 |
0.92 |
1.5 |
74 |
1.7 |
|
CPN100-80-160 |
8 |
1.58 |
2.2 |
69 |
||||
CPN100-65-200 |
12.5 |
2.5 |
4 |
68 |
||||
CPN100-65-250 |
20 |
4.3 |
5.5 |
65 |
||||
CPN100-65-315 |
32 |
7.5 |
11 |
58 |
||||
CPN100-65-400 |
50 |
23.5 |
30 |
29 |
||||
CPN125-100-200 |
100 |
27.77 |
12.5 |
4.66 |
7.5 |
73 |
2.2 |
|
CPN125-100-250 |
20 |
7.56 |
11 |
72 |
||||
CPN125-100-315 |
32 |
12.82 |
18.5 |
68 |
||||
CPN125-100-400 |
50 |
22.69 |
30 |
60 |
||||
CPN150-125-250 |
200 |
55.55 |
20 |
14.1 |
18.5 |
77 |
3.2 |
|
CPN150-125-315 |
32 |
23.2 |
30 |
75 |
||||
CPN150-125-400 |
50 |
38.9 |
45 |
70 |
||||
CPN150-125-450 |
65 |
53.6 |
75 |
66 |
||||
CPN200-150-250 |
400 |
111.1 |
20 |
26.9 |
37 |
81 |
4.5 |
|
CPN200-150-315 |
32 |
44.1 |
55 |
79 |
||||
CPN200-150-400 |
50 |
69.8 |
90 |
78 |
||||
CPN25-25-125 |
3.2 |
0.89 |
20 |
2900 |
0.33 |
1.1 |
53 |
1.8 |
CPN25-25-160 |
32 |
0.61 |
2.2 |
46 |
||||
CPN25-25-200 |
50 |
1.01 |
4 |
43 |
||||
CPN25-25-250 |
80 |
1.74 |
7.5 |
40 |
||||
CPN40-32-125 |
6.3 |
1.75 |
20 |
0.66 |
1.5 |
52 |
1.8 |
|
CPN40-32-160 |
32 |
1.17 |
3 |
47 |
||||
CPN40-32-200 |
50 |
2.26 |
5.5 |
38 |
||||
CPN40-32-250 |
80 |
4.28 |
11 |
32 |
||||
CPN50-32-125 |
12.5 |
3.47 |
20 |
1.33 |
3 |
51 |
1.8 |
|
CPN50-32-160 |
32 |
2.37 |
4 |
46 |
||||
CPN50-32-200 |
50 |
4.38 |
7.5 |
39 |
||||
CPN50-32-250 |
80 |
8.25 |
15 |
33 |
||||
CPN65-50-125 |
25 |
6.94 |
20 |
2.2 |
3 |
62 |
2 |
|
CPN65-50-160 |
32 |
3.82 |
5.5 |
57 |
||||
CPN65-40-200 |
50 |
6.55 |
11 |
52 |
||||
CPN65-40-250 |
80 |
11.84 |
18.5 |
46 |
||||
CPN65-40-315 |
125 |
21.8 |
30 |
39 |
||||
CPN80-65-125 |
50 |
13.88 |
20 |
3.95 |
5.5 |
69 |
2.4 |
|
CPN80-65-160 |
32 |
6.5 |
11 |
67 |
||||
CPN80-50-200 |
50 |
10.8 |
15 |
63 |
||||
CPN80-50-250 |
80 |
19.11 |
30 |
57 |
||||
CPN80-50-315 |
125 |
36.21 |
45 |
47 |
||||
CPN100-80-125 |
100 |
27.77 |
20 |
7.074 |
15 |
77 |
3.2 |
|
CPN100-80-160 |
32 |
11.9 |
22 |
73 |
||||
CPN100-65-200 |
50 |
18.9 |
37 |
72 |
||||
CPN100-65-250 |
80 |
32 |
45 |
68 |
||||
CPN125-100-200 |
200 |
55.55 |
50 |
35.4 |
45 |
77 |
4.5 |
|
CPN125-100-250 |
80 |
58.1 |
75 |
75 |
